Pole Mount PV Array
Pole-mount PV array in Southwest Michigan, doubled company's solar generation by adding an additional 25kW of power.
Solar Carport and Awning
Solar Carport and awning for picnic area. Provides power from the sun for the electric car fueling station for clean power. Provides dispersed sun/shade for well-lit, covered, outdoor retreat.
Off-grid residential PV system
This off-grid system features 5.6 kW solar array, a 5 kW sine-wave inverter, and battery capacity of 52.8 kWH.
Tables for Occupational Therapist
Height adjustable tables with cut-out ability for therapists and instructors to have full access to students in varieties of wheelchair heights. Designed for Brian Stoffer for implementation at Ottawa Hills High School in Grand Rapids.
Project funded by the Shriners.
Features include:
- 7-1/2 x 5 feet of total table-top surface
- Two of the tables have adjustable heights, from 26 inches to 36 inches off the floor
- End cutouts on tables for better student position
- Center console for increased leg room
- Matte top surfaces for advantage to visually impaired students
- Ground-fault outlets with water-proof cover on table-tops
- Spring-return key switchs for safe up / down control
- Ballasted base for tip-resistance
- Safely enclosed electrical panel
Project funded by the Shriners.
Features include:
- 7-1/2 x 5 feet of total table-top surface
- Two of the tables have adjustable heights, from 26 inches to 36 inches off the floor
- End cutouts on tables for better student position
- Center console for increased leg room
- Matte top surfaces for advantage to visually impaired students
- Ground-fault outlets with water-proof cover on table-tops
- Spring-return key switchs for safe up / down control
- Ballasted base for tip-resistance
- Safely enclosed electrical panel
Lab Design
Educational hands-on lab designed and implemented for a community college in West Michigan. Curriculum written specifically for wind/solar certificate program.
Features include:
- Grid-tied solar inverter - Grid-tied wind inverter
- Off-grid battery charge controller - Off-grid true sine-wave inverter
- Flat roof racking design and build - Flush-roof racking
- Power supply for simulated solar and wind power - PV panels for analysis and installation
- Wind turbine for analysis and troubleshooting - Roof mounted 2kW PV array
- Building mounted 1kW turbine - Solar-thermal system
- Wind site-analysis tools, anemometers - Solar site-analysis tools, solar pathfinders
- All common, commercial products - Safety equipment for wiring and rooftop work
Features include:
- Grid-tied solar inverter - Grid-tied wind inverter
- Off-grid battery charge controller - Off-grid true sine-wave inverter
- Flat roof racking design and build - Flush-roof racking
- Power supply for simulated solar and wind power - PV panels for analysis and installation
- Wind turbine for analysis and troubleshooting - Roof mounted 2kW PV array
- Building mounted 1kW turbine - Solar-thermal system
- Wind site-analysis tools, anemometers - Solar site-analysis tools, solar pathfinders
- All common, commercial products - Safety equipment for wiring and rooftop work

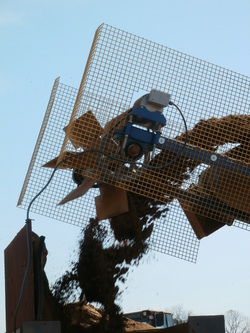

Aggregate Energy Harvester
Energy capture from conveyor-transfer fall zones in material transport operations. This integrated system utilizes a rotary generator to charge a battery bank. This stored power is used to power security lighting, cameras, wireless data communications, and other local loads.
Read the MLive Article: http://www.mlive.com/business/west-michigan/index.ssf/2011/02/invention_utilizes_wasted_proc.html. The product brochure is through: http://www.archenvironmental.com/documents/DEHCutSheet.pdf
Read the MLive Article: http://www.mlive.com/business/west-michigan/index.ssf/2011/02/invention_utilizes_wasted_proc.html. The product brochure is through: http://www.archenvironmental.com/documents/DEHCutSheet.pdf
